4 Link

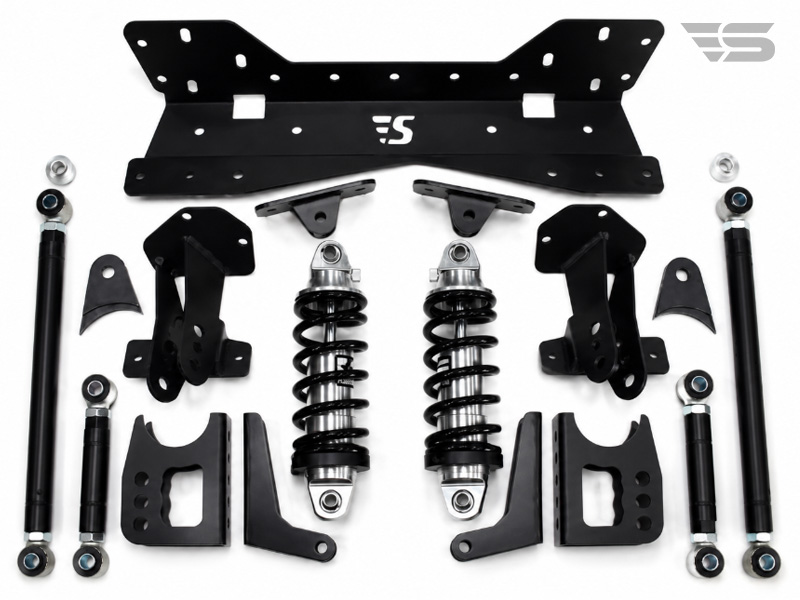

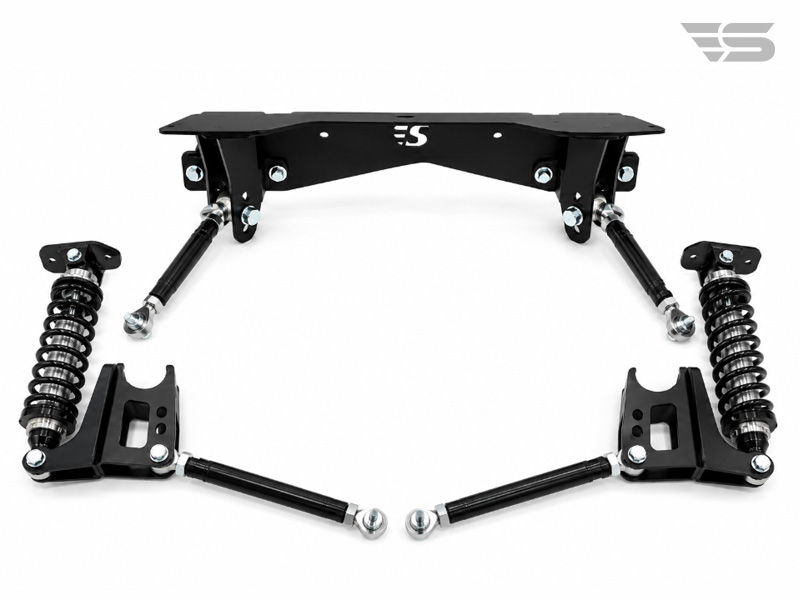

4-Link Suspension Kits

Vehicle-specific 4-link kits, parallel and triangulated, manufactured in-house, customised and installed for muscle cars, hot rods and custom builds. Not a universal, one-size-fits-all setup.

How a 4-Link Actually Works

Chasing traction, or trying to get on top of rear-end tuning? A 4-link conversion is how you get there. It replaces your leaf springs or ladder bars with four separate bars (two lower, two upper) that locate the rear axle in the chassis and give you far more control over squat and pinion angle than a leaf-spring setup ever will.

Lower bars control fore-aft axle location and take the brunt of acceleration and braking load.

Upper bars control axle rotation. This is what sets and holds your pinion angle under power, instead of letting it wind up and change with every launch.

Get the bar angles wrong and you'll fight roll steer (the wheelbase changing slightly as the suspension moves) or driveline vibration from a pinion angle that's drifting under load. Get them right and the axle stays planted, predictable, and where you put it.

This category is empty! Please try another category or use our search function to find what you are looking for. If you require further assistance please contact us.

Parallel or Triangulated: Which 4-Link Are You Looking At?

Every 4-link kit you find will be one of two layouts:

Parallel 4-Link

The upper bars run parallel to the lowers, straight front-to-back. Simple to visualise, straightforward to mount, but a parallel 4-link has no side-to-side location on its own, so it has to run with a Panhard bar (or Watts linkage) to stop the axle walking laterally under load.

Triangulated 4-Link

The upper bars angle inward to the chassis instead of running parallel, forming a triangle that locates the axle side-to-side by itself, no Panhard bar required. That usually means tighter tyre-to-guard clearance and more freedom to route the bars around the chassis, fuel cell or exhaust. It's the more common choice in tight-tunnel muscle car and hot rod installs for exactly that reason.

There's no universally "correct" answer. It comes down to your chassis, your tunnel width, and whether you want the simplicity of a Panhard bar or the packaging win of triangulation. This is exactly the kind of call worth talking through with our team before you commit to a kit, because it's expensive to get wrong after the brackets are welded in.

Do You Need a Panhard Bar?

If you're running (or considering) a parallel 4-link, yes: a Panhard bar (or a Watts linkage) is what stops the axle sliding sideways under load, since the parallel bars alone won't locate it side-to-side. Go triangulated instead and you skip the Panhard bar altogether, because the angled upper bars handle lateral location on their own. It's not a separate part you bolt on as an afterthought. Which configuration you choose above decides whether you need one at all.

What to Check Before You Buy a 4-Link Kit

Not all 4-link kits are built to the same standard. Before you commit to one, know what you're actually looking at:

Mounting Point Layout

This is where most of the risk lives. Misplaced mounting points cause poor handling or driveline issues that no amount of adjustability fixes after the fact, and depending on your chassis, you may need reinforcement or modification around the link mounts to handle the loads a 4-link puts through them. Get it engineered to your chassis, not eyeballed off a universal template.

Bolt-In vs Weld-In

Bolt-in kits are faster to fit and easier to remove, but weld-in setups generally give you a stronger, more precise mounting point, worth weighing against how permanent you want the install to be.

Engineering Compliance

In Australia, rear suspension modifications can require engineering certification for roadworthy and registration purposes depending on your state and the extent of the change. Confirm this before you fit anything, not after.

We Manufacture 4-Link Kits In-House, Built to Suit Your Vehicle

We don't just resell a universal kit off someone else's shelf. We manufacture our 4-link components in-house, built around your chassis rather than adapted to fit it afterwards. That means bracket work, bar length and mounting geometry are designed for your vehicle from the start. We back that with the full job: layout, fabrication, geometry setup and reinforcement where the application needs it, right through to install.

In-House Manufactured Kits

In-house manufactured 4-link kits, built to suit your vehicle, not a generic bar set.

Parallel & Triangulated Configurations

Manufactured to your chassis specs, not adapted from a universal layout.

Custom Bracket & Mount Fabrication

Engineered to the mounting points your chassis needs.

Geometry Setup

Pinion angle, anti-squat and instant centre set correctly before the vehicle leaves.

Chassis Reinforcement

Chassis reinforcement and modification where required by the application.

Supply-Only to Full Install

Supply-only through to full install and ground-up chassis integration. Pairs with our chassis, differential and IFS/IRS work for a complete rear-end build.

Talk to Us Before You Buy

Every 4-link setup we build is matched to the car and what it's actually going to be used for.

If you're still deciding between parallel and triangulated, or you want a setup built around your chassis, get in touch.

Start a Build Enquiry → Call 07 3488 7831 Email info@superformance.com.au
