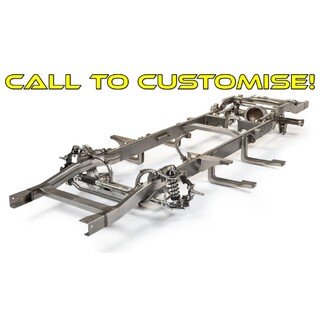

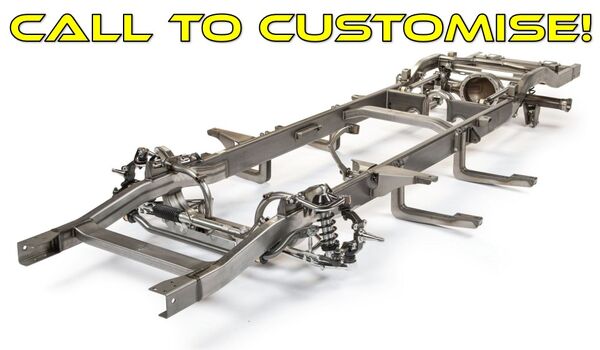

Art Morrison 1953-56 F100 GT Sport Truck Chassis

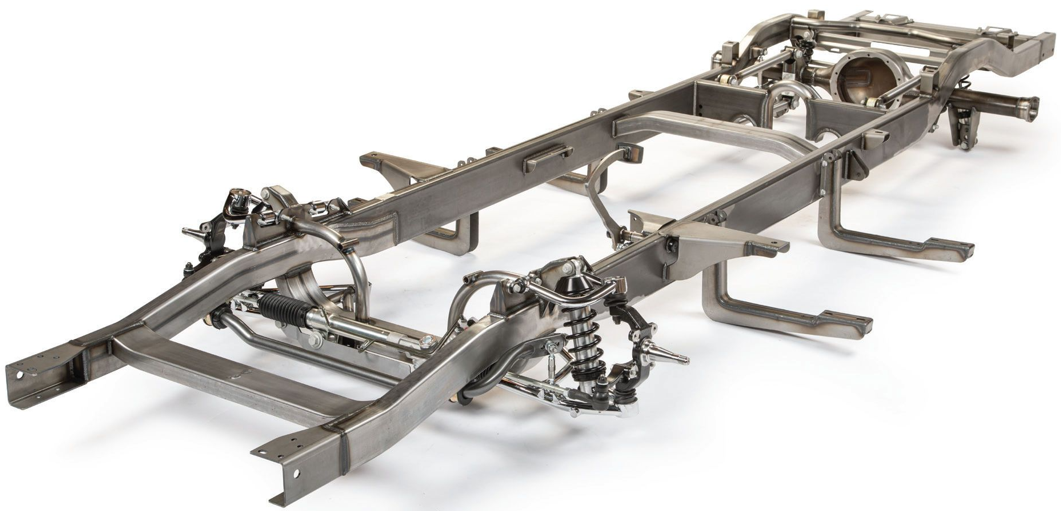

1953-56 Ford F100 Rolling Chassis Package

The mid-1950s F100 is the epitome of a classic design. There are legions of enthusiasts who consider it the most beautiful pickup ever built. Now, beauty can be more than skin deep with the advent of AME’s expertly engineered and precision crafted GT Sport chassis for the F100. With it, the original I-beam axle, leaf spring suspension, worm-and-sector steering and antiquated drivetrain can be replaced with contemporary technology for maximum driving pleasure.

Up front you’ll find AME’s Sport IFS with rigid upper and lower control arms, adjustable anti-roll bar and greaseable bushings that work in concert with custom-valved coilovers. Like our other truck chassis, you have a choice of two different ride heights. One is quite low, per contemporary trends and requires that the bed floor be raised three inches. The other provides a standard ride height and requires no modifications whatsoever. MAR-K Specialized Manufacturing is making a raised floor specific for our low ride height chassis making this modification a snap.

The extra rigid frame, which features 2”x6” main rails, is designed to accommodate a variety of exhaust systems and provide optimum ground clearance. A 4-bar rear suspension with Johnny Joint rod ends and a Panhard bar keeps the 9” rear solidly planted for optimum acceleration and cornering. Premium coilovers tailor the handling and ride to your requirements. Integrated into the chassis just behind the 9” housing are fuel tank mounts that allow for a much safer location and helps with the overall balance of the vehicle.

Like all Art Morrison GT Sport chassis, all the required body mounts, core supports, running board and bumper mounts are included – all fixture-welded by AME technicians to provide you with a true bolt-on build. The chassis comes with mounts for popular traditional and modern Ford engines and virtually any standard or automatic transmission combination. An optional pedal mount assembly makes for a clean installation.

AME’s 3D-modeled frame is the perfect foundation for a restomod truck of the highest order; one with a contemporary stance, great handling and a comfortable ride. Moreover, an AME GT Sport chassis represents an excellent investment in the value of any vehicle. It doesn’t get any better than this!

Technical Features

• Engine Mount Options - Unique mounts can accommodate Ford small block, big block and Coyote engines (at extra cost).
• Modern Suspension Geometry - Sport IFS geometry excels in freeway stability and high-speed cornering.
• Modernized Brake & Clutch - Floor-mounted brake and hydraulic clutch systems available.
• Rigid Structure - 2”x6”x.180” wall main frame rails provide exceptional stiffness, eliminating rattles and independent cab/bed movement.
• Ride Height Options - Available in two ride heights.
• Engineered Steering Geometry - Modern steering geometry allows for comfortable and predictable driving.
• Adjustable Cab Mounts - Billet aluminum adjustable cab mounts available.

Rolling Chassis Package Includes:

• Bumper to Bumper Bare Chassis Including Automatic Brake Pedal
• Wilwood 11" Drilled and Slotted Rotors with 4-Piston Calipers Front and Rear
• Strange Single Adjustable Coilover Shock Absorbers Front and Rear
• Tubular Upper And Lower Front Control Arms
• Wilwood Forged Pro Spindles and Steering Arms
• New Left Hand Drive Power Steering Rack (RHD available at Extra Cost)
• Tie Rod Ends, Ball Joints and Forged Steering Arms
• 1-3/8" Front Sway Bar Kit and 3/4" Rear Sway Bar Kit
• Transmission Crossmember - Suit C4, C6 etc. - Contact us for Specific Fitments
• Four Bar Links with Johnny Joint rod ends
• Adjustable Panhard Bar with Johnny Joint rod ends
• Nine Inch Differential Housing with Brackets, Drain and Vent Kit
• Strange 31 Spline Axles, Bearings and Axles
• Strange S-Series Centre Section with Eaton TruTrac Upgrade
