Chevrolet Performance Big Block Chevy Block Only
4.250" Bore - Standard Mains - Standard Deck
SKU code: GEM-19170538

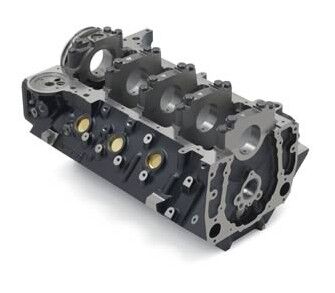

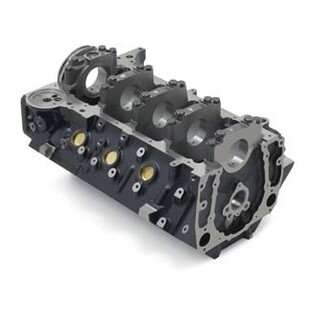

Chevrolet Performance Gen 6 Big Block Chevy Engine Block
Direct from Chevrolet Performance are these 454 c.i.d. bare engine blocks. These are special Gen. VI bare iron blocks with 4.25 in. cylinder bores with 4-bolt main bearing caps. They have machined fuel pump pads, a one-piece rear main seal design, and standard 454 deck height. The maximum cylinder bore on these blocks is 4.250" plus .060", and will require the "Gen V/GenVI" design one-piece oil pan.
Specifications:
Cylinder Bore Diameter: 4.250"
Max Bore & Stroke: 4.310" x 4.250"
Cam Location: Standard
Rear Main Seal: 1-Piece
Deck Height: 9.800"
Fuel Pump: STD Mechanical Provision
Main Bearing Size: 2.750" (Standard)
Oil System: Main Priority Oiling (can use dry sump)
Oil Pan: Gen 5/6 Style
Horsepower Rating: 700hp Max.
Weight: 112kg (247 lbs.)
(GEM-19170538)
| SKU | GEM-19170538 |
| Brand | Chevrolet Performance |
| Shipping Weight | 112.0000kg |
| Shipping Width | 0.980m |
| Shipping Height | 0.780m |
| Shipping Length | 0.580m |
| Shipping Cubic | 0.443352000m3 |
