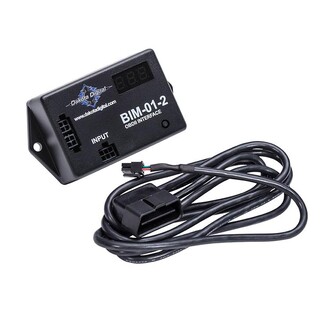

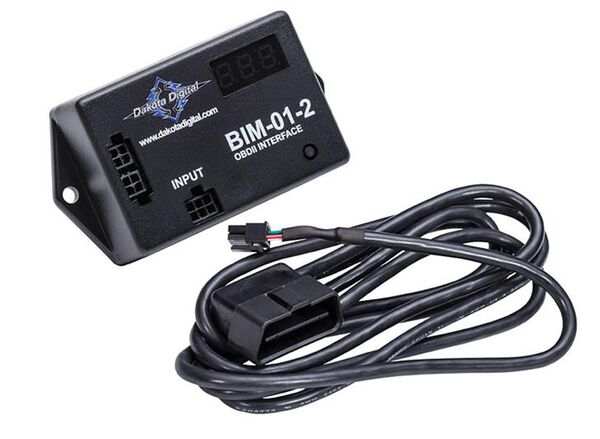

Dakota Digital BIM-01-2 OBD-II CAN Interface Module

Reads Factory ECM Data From the OBD-II Port

SKU code: DAK-BIM-01-2

Dakota Digital BIM-01-2 OBD-II interface plugs into the diagnostic port and pulls engine and transmission data from the factory ECM for Dakota Digital instrument systems. On most vehicles it supplies speedometer, tachometer, engine temperature and the check engine light, and depending on the ECM it can also provide intake air, transmission and ambient temperature, gear position, oil pressure and boost. It supports SAE J1850 VPW, J1850 PWM and ISO 15765 CAN 500k 11 bit protocols following SAE J1979. Extra data varies with each factory or modified ECM, so confirm what yours puts out.
$260.00
Sold Out

Quantity:

Share This Item:

Dakota Digital BIM-01-2 OBD-II interface plugs into the diagnostic port and pulls engine and transmission data from the factory ECM for Dakota Digital instrument systems. On most vehicles it supplies speedometer, tachometer, engine temperature and the check engine light, and depending on the ECM it can also provide intake air, transmission and ambient temperature, gear position, oil pressure and boost. It supports SAE J1850 VPW, J1850 PWM and ISO 15765 CAN 500k 11 bit protocols following SAE J1979. Extra data varies with each factory or modified ECM, so confirm what yours puts out.

(DAK-BIM-01-2)

SKU DAK-BIM-01-2
Brand Dakota Digital
