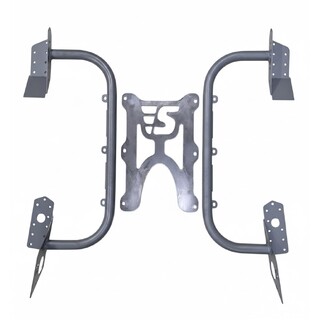

LH - LX - UC Torana Chassis Connector Kit

LH - LX - UC Weld-In Chassis Strengthening Kit

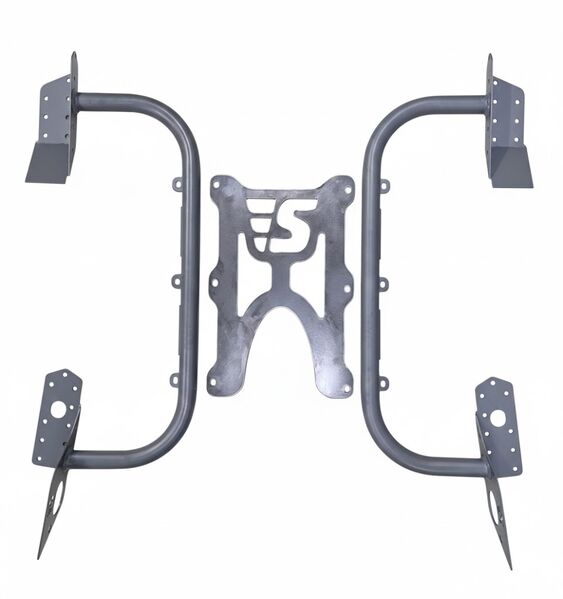

Our 100% CAD Designed Chassis strengthening kit is designed to fit LH-UC Toranas. The chassis kit ties the weak section of the Torana body together. The chassis kit welds into the lower trailing arm bracket at the rear and to the end of the rails and the front. The cage that bolts in the centre of the tubing has a cutout in the design to allow for extra tail shaft clearance when running a 4” and larger tail shaft. The cage is slotted left to right to allow for original GM manufacturing tolerances and brackets are manufactured from 3mm (10Gauge) Steel then CNC folded for precision. Each of the brackets has a number of plug weld holes for added strength. The rear bracket has a locating hole in which a bolt is fitted for easy install. The tubing is CNC bent and is made from 1-1/2” CDW tubing.

Kit is supplied in a black epoxy sealer primer.
