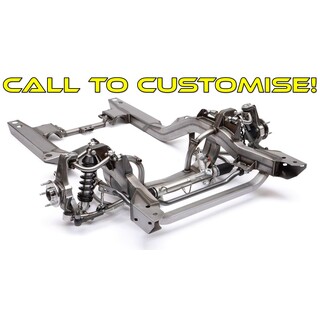

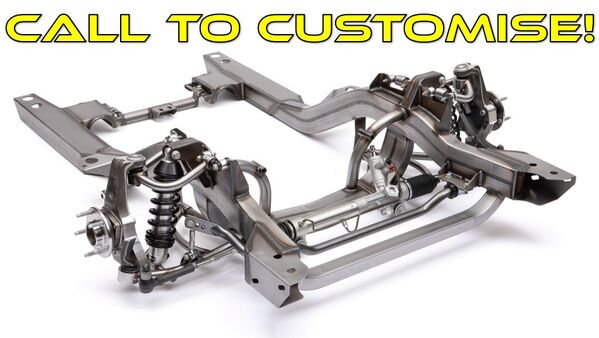

Art Morrison 1970-81 Camaro and Firebird Front Chassis Clip

1970-81 Camaro and Firebird Direct Bolt-on GT Sport Front Clip

The AME engineering team made a good thing even better! Handling has been improved through use of special TIG welded DOM steel control arms and a revised front end design that can accommodate high static negative camber angles for use with aggressive, low treadwear-rated tires. This new setup also features serviceable ball joints and employs high strength steel coilover mounts to withstand high stress cornering and bump loads.

Designed through the use of FEA (Finite Element Analysis), the AME GT Sport clip is substantially lighter than the bulky OEM unit. With a reduced unsprung weight, C6 Corvette uprights, shortened front view swing arm, modified caster and adjustable coilovers, the GT Sport clip provides superior handling. A 3-position adjustable hollow anti-roll bar is employed with adjustable end links to eliminate preload. It comes with a near-stock front tread width to provide optimum wheel fitment opportunities and can easily be used with wider-than-stock tires.

Mounts are available for small block, big block or LS/LT Series engines. Trans mount options facilitate using all popular manual or automatic transmissions. No cutting or welding is required for installation and most any competent do-it-yourselfer can transform an ordinary ride into a corner-hugging g-Machine in the comfort of their own garage. An optional solid body mount kit is available, as are conventional mounts, headers and a brake line kit.

Kit Includes:

• Art Morrison Bolt-In Front Chassis Clip
• Tubular Upper And Lower Control Arms
• New Left Hand Drive Power Steering Rack (Right Hand Drive Available at Extra Cost)
• Strange Single Adjustable Coilover Shock Absorbers
• C6 Corvette-Style Front Spindles
• C7 Enclosed Wheel Hub/Bearing Assembly
• Wilwood 12.88" Drilled and Slotted Brake Rotors with 4-Piston Calipers
• Tie Rod Ends, Ball Joints and Forged Steering Arms
• 3-Position Adjustable Sway Bar Kit
• Transmission-Specific Crossmember
